Air King Snap-In installation Exhaust Fans

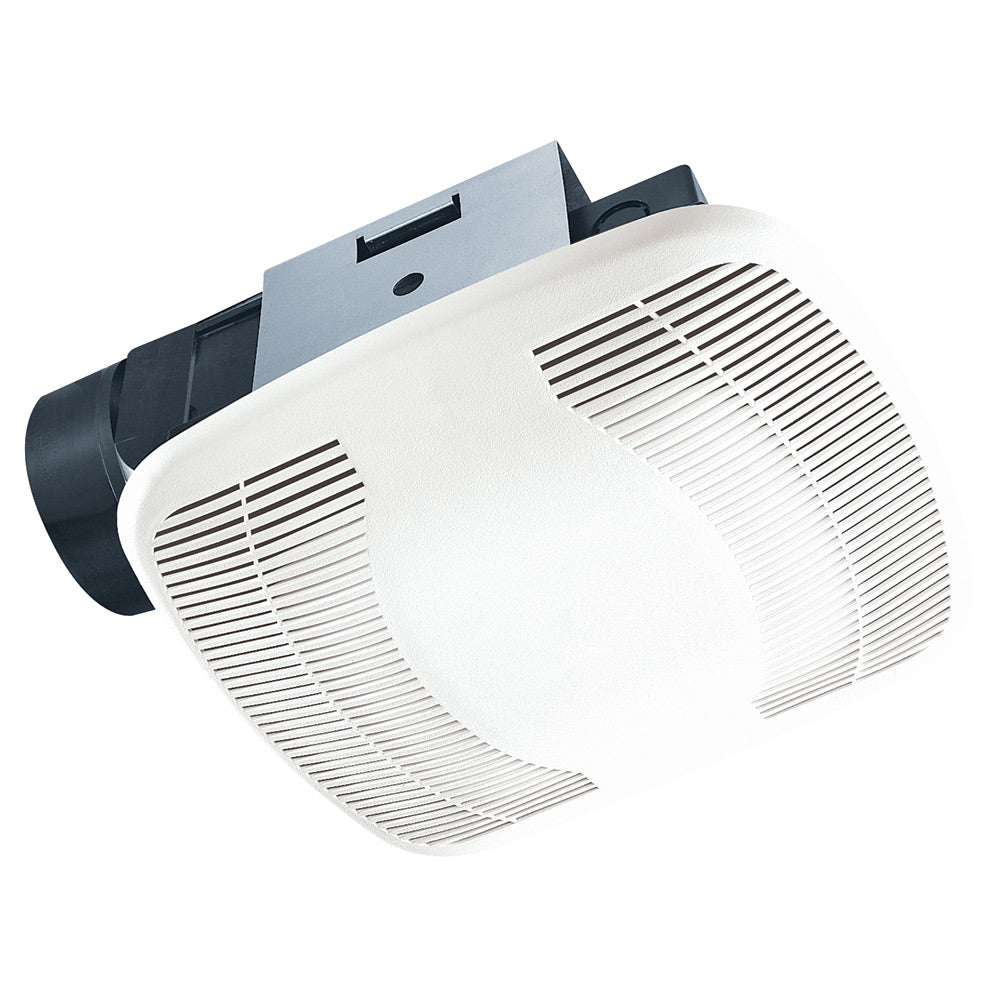

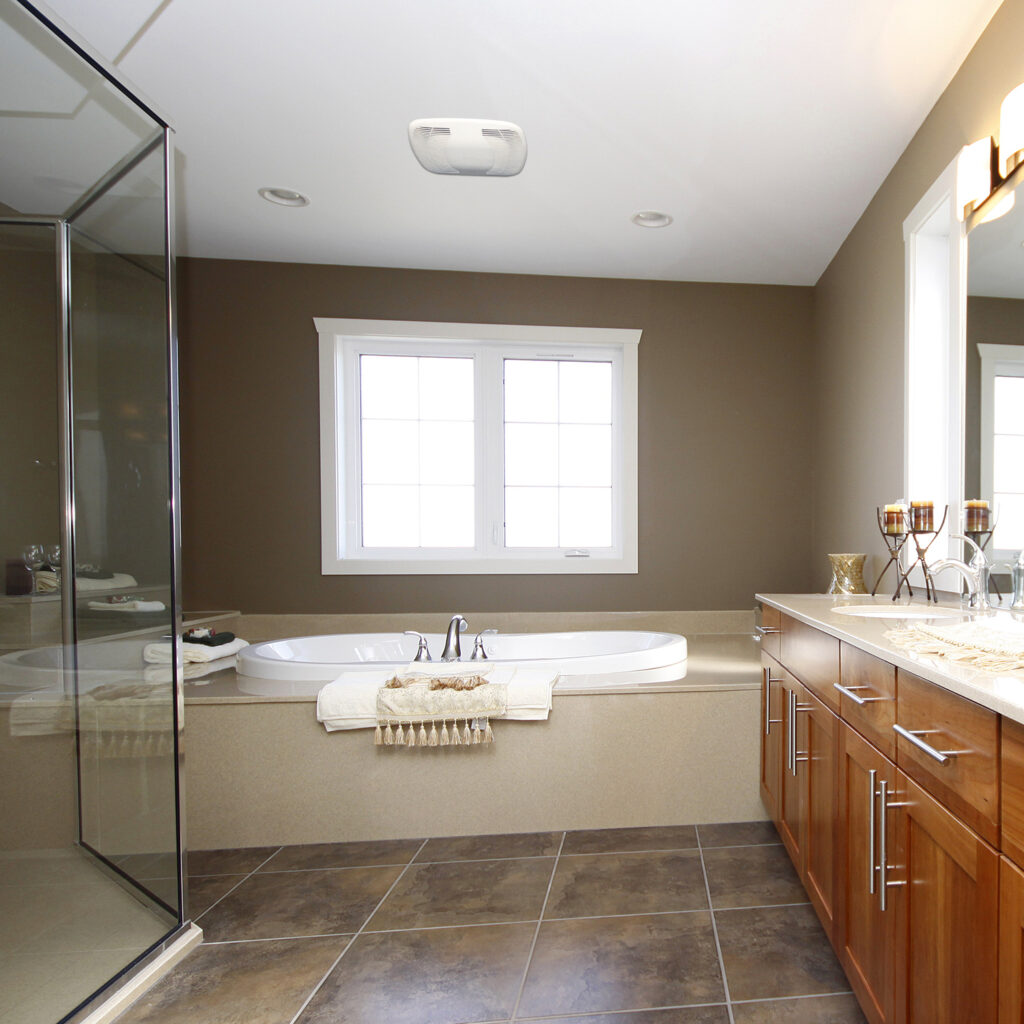

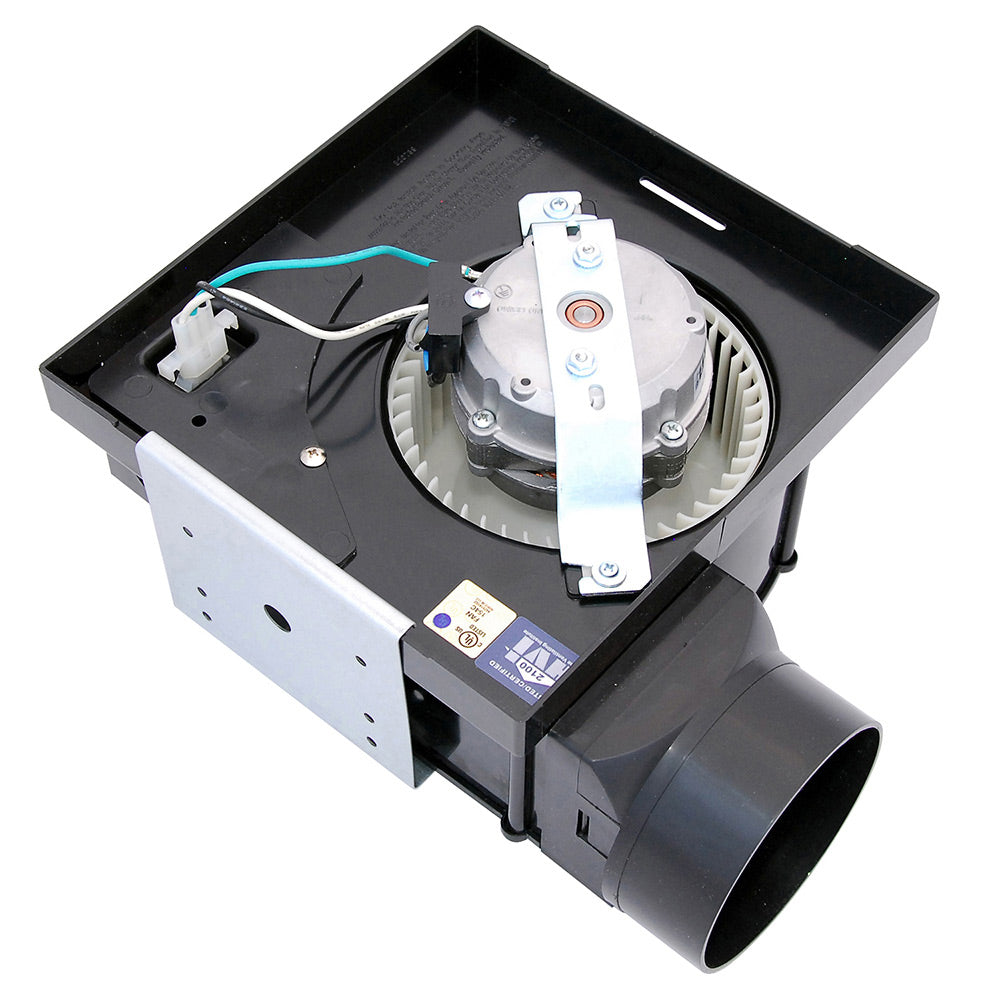

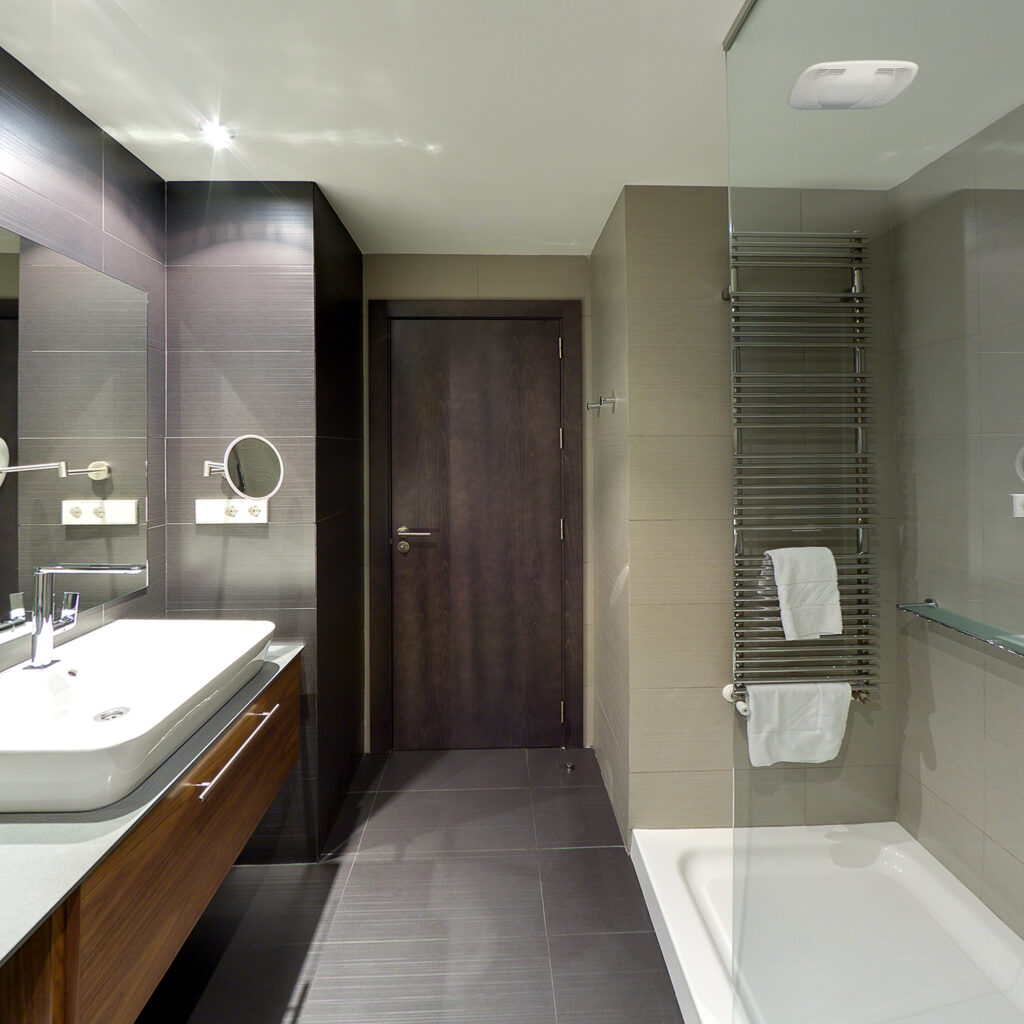

The Air King’s BFQ series SNAP-IN installation exhaust fans provide effective and affordable ventilation for your bathroom, laundry room, or other areas of the home needing ventilation. The motor is permanently lubricated, suitable for continuous operation and requires little to no maintenance. The Snap-In installation exhaust fans easily install using the included SNAP-IN mounting system and the 4 inch round plastic duct connector with damper protects against backdrafts. The white, low profile plastic grill is unobtrusive and complements almost all decors. The SNAP-IN installation exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI Certified. Available in multiple CFM levels to meet your ventilation needs.

Details

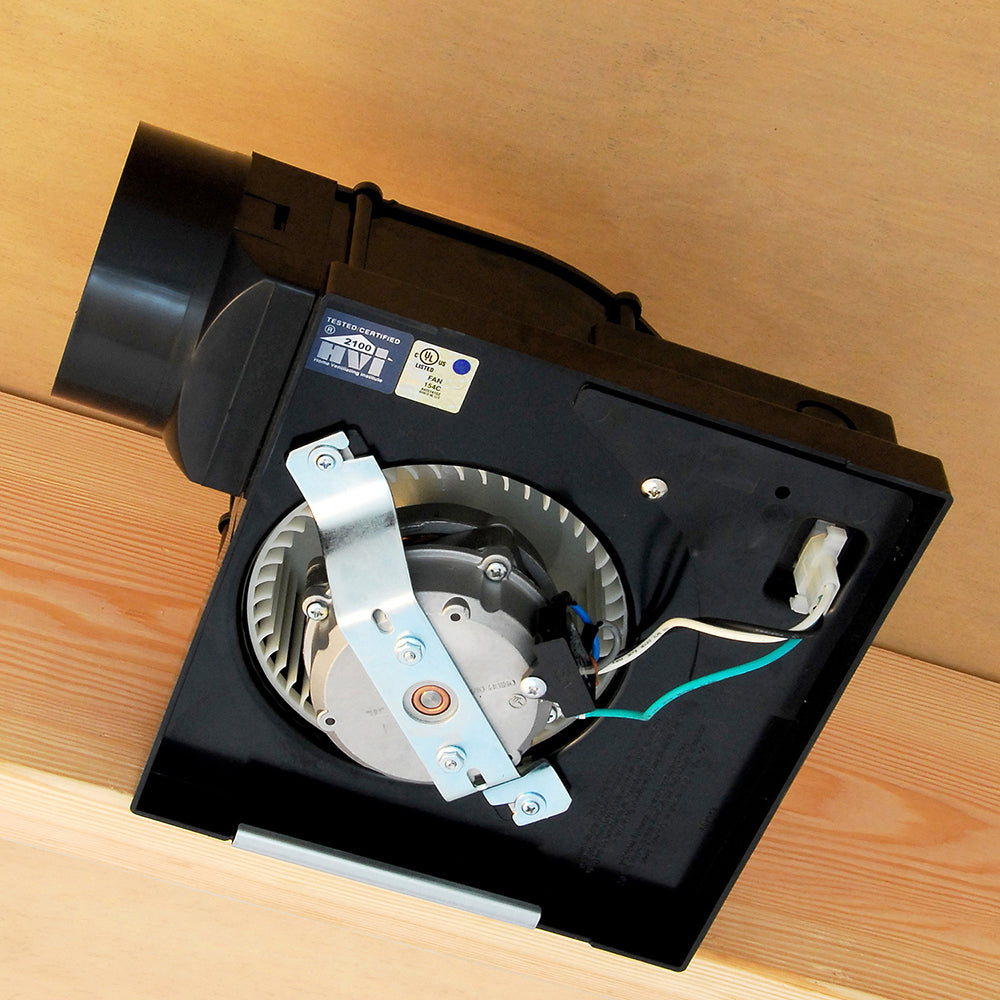

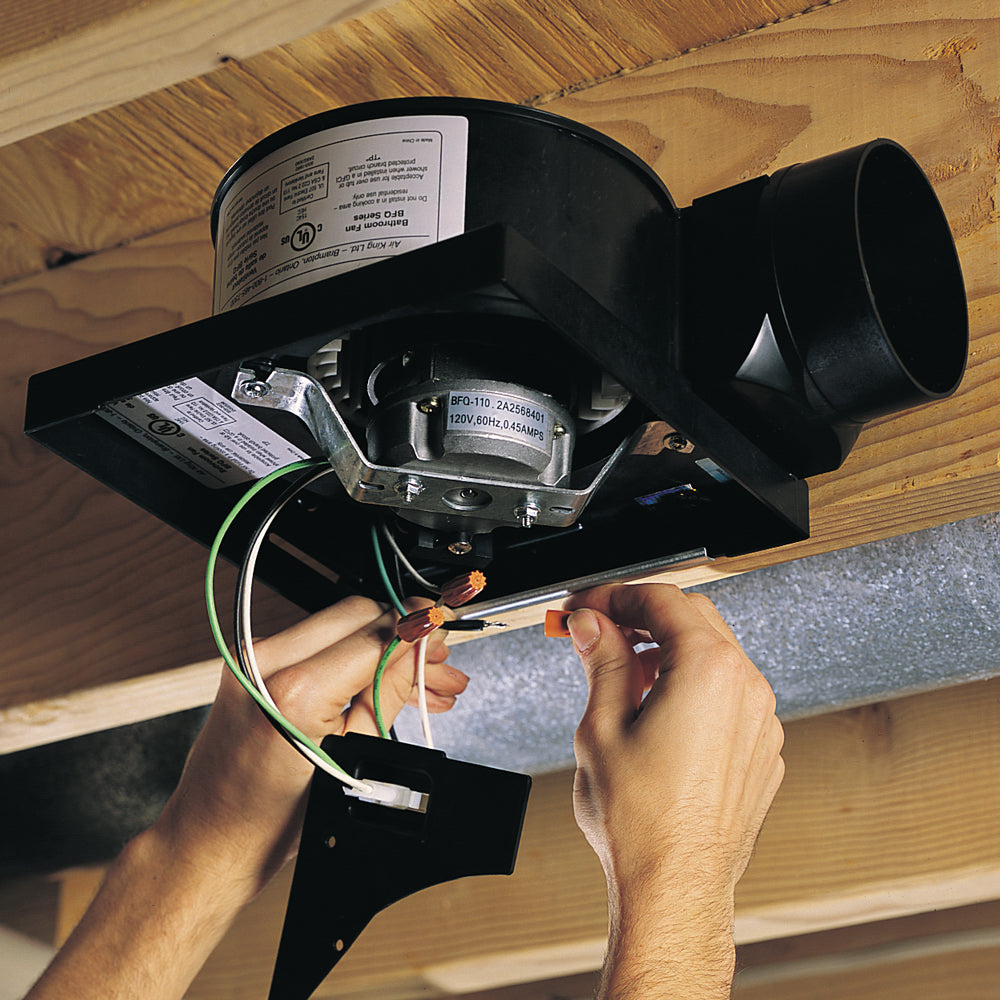

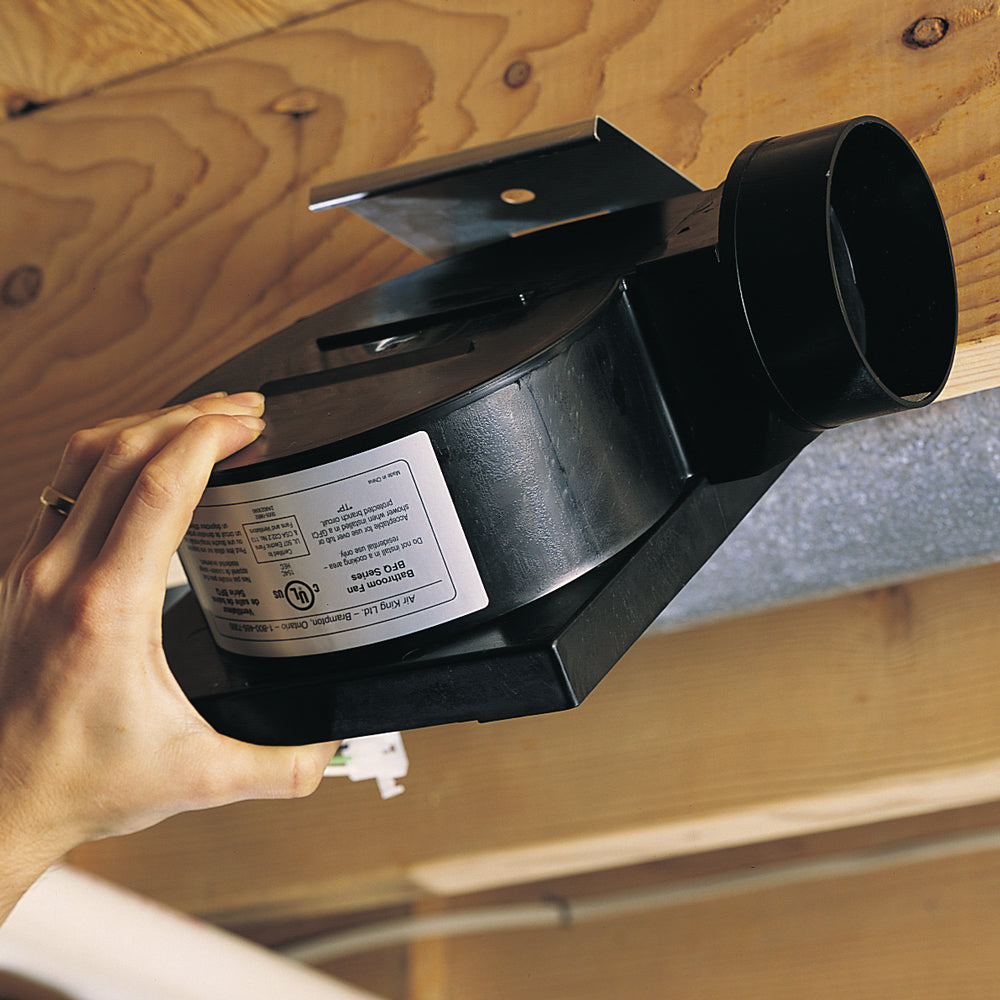

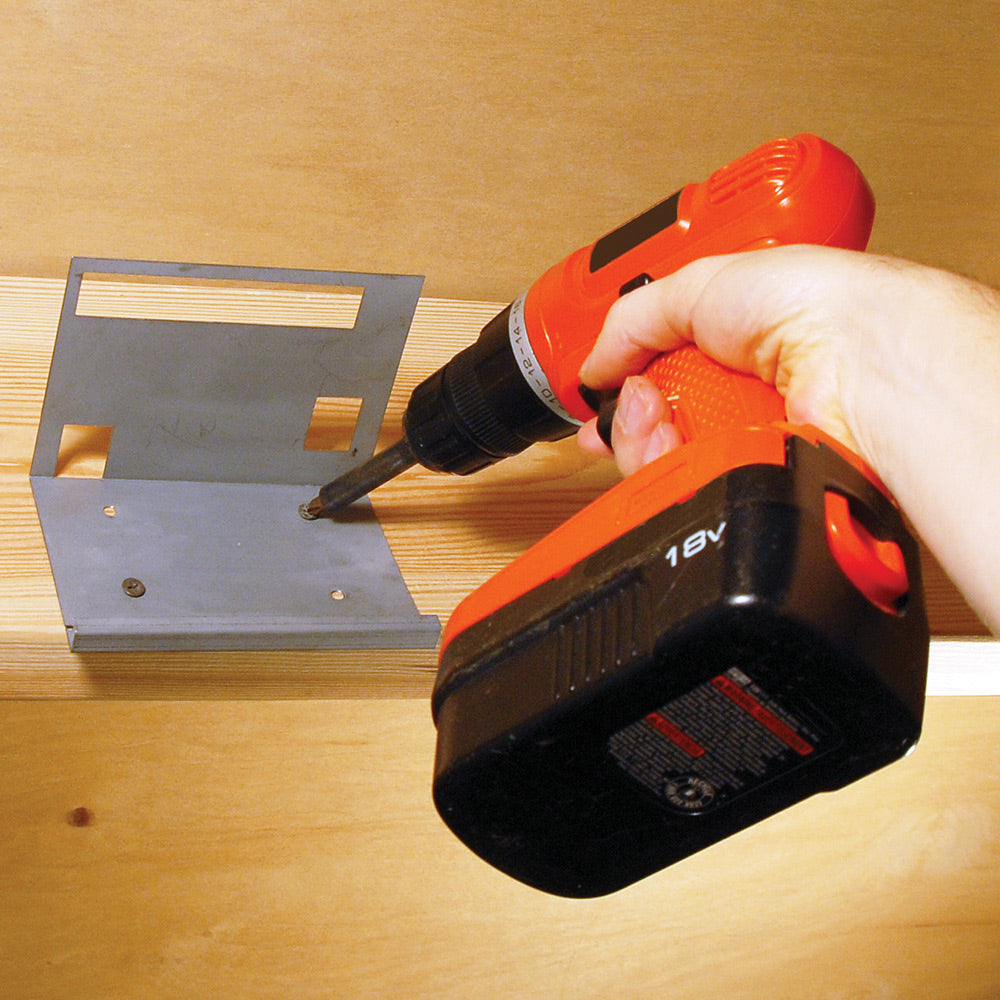

Easily installs using the SNAP-IN Mounting System – Nail, Snap, Wire.

Able to be installed into 2 inch x 6 inch constructions.

Wire nuts and romex connector included with unit.

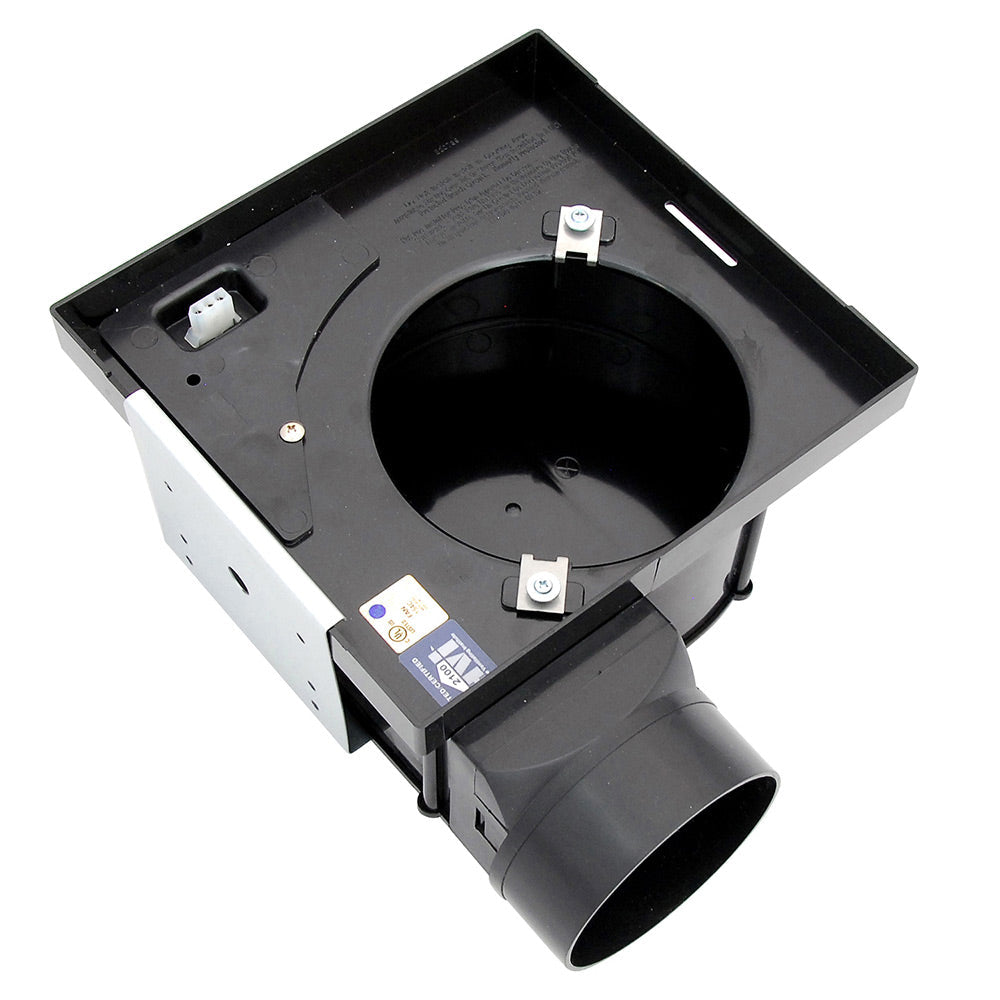

Plastic housing will not rust or corrode over time.

UL listed for installation over a tub or shower on a GFCI circuit.

4 inch round duct collar with a plastic damper protects against backdrafts and ensure quiet operation.

Available in contractor packs (4 housings and 4 trim kits).

HVI certified performance.

SPECIFICATIONS

Models	BFQ80	BFQ90	BFQ110	BFQ140
Specification Sheet Download	BFQ80	BFQ90	BFQ110	BFQ140
CFM @ .1 SP	80	90	100	120
Sones @ .1 SP	2.0	3.0	3.5	5.0
Sound Level	Quiet	Moderate	Moderate	High
Effective Ventilation Area	80 to 100 sq. ft.	90 to 115 sq. ft.	100 to 125 sq. ft.	120 to 150 sq. ft.
ASHRAE 62.2 Ventilation	Local	Local	–	–
ENERGY STAR® certified	No	No	No	No
Can be used to Comply with California Title 24 requirements	No	No	No	No
CALGreen	No	No	No	No
Duct Size	4″ round	4″ round	4″ round	4″ round
Collar / Damper	Plastic	Plastic	Plastic	Plastic
Mounting	SNAP-IN Bracket	SNAP-IN Bracket	SNAP-IN Bracket	SNAP-IN Bracket
Housing	ABS Plastic	ABS Plastic	ABS Plastic	ABS Plastic
Dimensions
